OVERVIEW
This is a Type-C 5-in-1 hub with HDMI, 3 USB-A，and Type-C female port, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI video with max 8k/30Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 3 USB-A ports allow you to connect 3 USB devices simultaneously. Besides, the Type-C female supports PD 3.0 with max 100W PD Charging. It can work on all DP Alt mode supported Type-C host.
FEATURES
Support DP1.4 Alt mode
Support positive and negative connection
Support HDMI max 8K/30Hz
Support Dynamic HDR10+
Support HDCP1.4&HDCP2.3 specification
Support HPD
1 USB-A port (next to HDMI port) supports max 7.5W(5V@1.5A) downstream charging,other ports support max 900mA downstream charging per port and 2 ports share max 7.5W (5V/1.5A) downstream charging.
Max 5Gbps data transmission
Support short-circuit, over-current, over-voltage protection
Support PD Charging 100W (20V/5A)
Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter

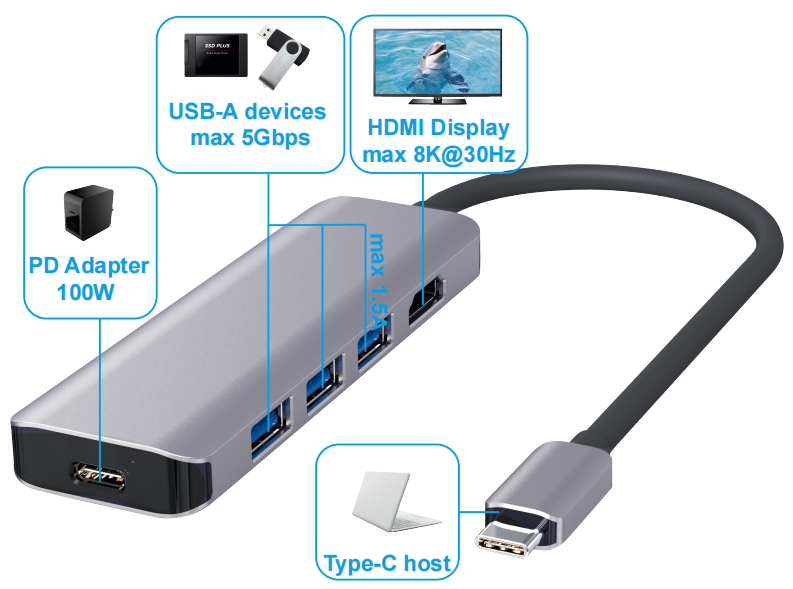

CONNECTION DIAGRAM
SPECIFICATIONS
| Input/Output Connector |
|
| Input | Type-C Male x1 |
| Output | HDMI Female x1 USB-A Femalex3 Type-C femalex1（PD Charging) |
| Type-C Malex1(Connect to host) | |
| Ø Support DP1.4 Alt mode Ø Support HBR3 Ø Support DSC1.1/1.2a or uncompressed video Ø Support DSC 1.1/1.2a decoder Ø Support 8/10/12 bit color depth Ø Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 Ø Support positive and negative connection | |
| HDMI x1 | |
| Ø Support HDMI max 7680*4320@30HZ Ø Support HDMI max 4196(3840)x2160/120Hz Ø Support Dynamic HDR10+ Ø Support HDCP1.4&HDCP2.3 specification Ø Support HPD Ø Support DSC 1.1/1.2a decoder Ø Support 8/10/12 bit color depth output Ø Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 Ø Support 1 to 32 channels LPCM 192kHz audio output Ø Supports HBR audio up to 1536kHz NOTE: The output resolution, refresh rate, video pixel format depends on the performance of the computer and the monitor | |
| USB-A 3.0X3 | |
| l 1 USB-A port (next to HDMI port) supports max 7.5W(5V@1.5A) downstream charging,other ports support max 900mA downstream charging per port and 2 ports share max 7.5W (5V/1.5A) downstream charging. Ø Max 5Gbps data transmission Ø Support short-circuit, over-current, over-voltage protection | |
| Type-C Femalex1(for PD Charging) | |
| Ø Support PD Charging 100W (20V/5A) Ø Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter Ø 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host | |
| Physical |
|
| Size | 105.7*34*11.5(mm) |
| Weight | 69g |
| Warranty |
|
| Limited Warranty | 1 Year |
| Environmental |
|
| Operating Temperature | 0℃ to +45℃ |
| Operating Humidity | 10% to 90 % RH (no condensation) |
| Storage Temperature | -10℃ to +70℃ |
| Storage Humidity | 10% to 90 % RH (no condensation) |
| Power Supply |
|
| USB-C PD Charging Port | 100W(20V/5A) |
| Regulatory Approvals |
|
| Certifications | FCC,CE |
